Unboxing and Review for Dash Miner Fusionsilicon X7

No Comments 1687 Views1


Unboxing and Review for Dash Miner Fusionsilicon X7 IMG 00

Fusionsilicon X7, a Dash miner based on X11 algorithm, was released by Shenzhen Fusionsilicon Company in early 2019. Before we start to unbox the miner, we’d better firstly understand what Dash stands for.



What is Dash

Dash is an anonymous cryptocurrency which enables instant and anonymous payment over a distributed master node network. The total amount of Dash is approximately 18.9 million, which will be exhausted in 2300.

Unboxing and Review for Dash Miner Fusionsilicon X7 IMG 01

Dash is issued every 2.5 minutes and about 550 blocks are created per day. At present, the hashrate of Dash network is about 4.2P. On the Dash network there are 4,936 active master nodes. Among the block rewards, the mining worker accounts for 45% and the Dash budget system accounts for 10%. The block reward now is 3.11 DASH and the reward for the worker is 1.55 DASH.

Unboxing and Review for Dash Miner Fusionsilicon X7 IMG 02



Specifications

Hashrate 262G, power consumption 1420w, overall energy efficiency ratio 1G/5.42W.

Brand FusionSilicon X7
Models 262 GH/s @ 1420w
Hashrate 262 GH/s ± 5%
Power Consumption 1420w ± 10%
Power Efficiency 4.96J/G ± 10%
Size 340mm(L) * 130mm(W) * 198mm(H)
PSU No  integrated PSU
PSU Recommended Antminer APW7 1800w PSU



Appearance

The case of Fusionsilicon X7 adopts brushed aluminum alloy technology. The size of the case is 340x130x198mm and the whole miner weighs 4.8kg.

FusionSilicon X7 262GH Dash Miner IMG 02

FusionSilicon X7 262GH Dash Miner IMG 05

Fusionsilicon X7 adopts the traditional design of single-cylinder dual-fan heat dissipation. The advantage of single cylinder is small size with less space occupation, while the disadvantage is the need of external power cord.

FusionSilicon X7 262GH Dash Miner IMG 04

FusionSilicon X7 262GH Dash Miner IMG 06

Fusionsilicon X7 is equipped with the control board with kernel version of Linux 4.9.69 and the built-in mining software cgminer, whose current version is 1.0.19.

Unboxing and Review for Dash Miner Fusionsilicon X7 IMG 13

On the control panel is distributed with IP Report button, Ethernet interface, status indicators and reset button.

Unboxing and Review for Dash Miner Fusionsilicon X7 IMG 09

On the lateral side of Fusionsilicon X7 are attached with the detailed parameters and warning message.

FusionSilicon X7 262GH Dash Miner IMG 01

Fusionsilicon X7 has three hash boards with a total of 63 x 22nm chips. The hash board and the control board are connected by flat cables.

Unboxing and Review for Dash Miner Fusionsilicon X7 IMG 11

Fusionsilicon X7 can be connected to the 6PIN miner power supply. The solder joints at the interface are rounded. The cushions between the hash board and the casing can effectively prevent scratching.

Unboxing and Review for Dash Miner Fusionsilicon X7 IMG 10

Unboxing and Review for Dash Miner Fusionsilicon X7 IMG 03

Each of the three hash boards requires three pieces of 6PIN power supplies. Considering the power supply for the control board, a total of 10 6PIN power cables are required. The only shortcoming of Fusionsilicon X7 is that the 6PIN power interface is not designed to prevent misconnection. People have to pay special attention to the plug direction to prevent misconnection.

Unboxing and Review for Dash Miner Fusionsilicon X7 IMG 14

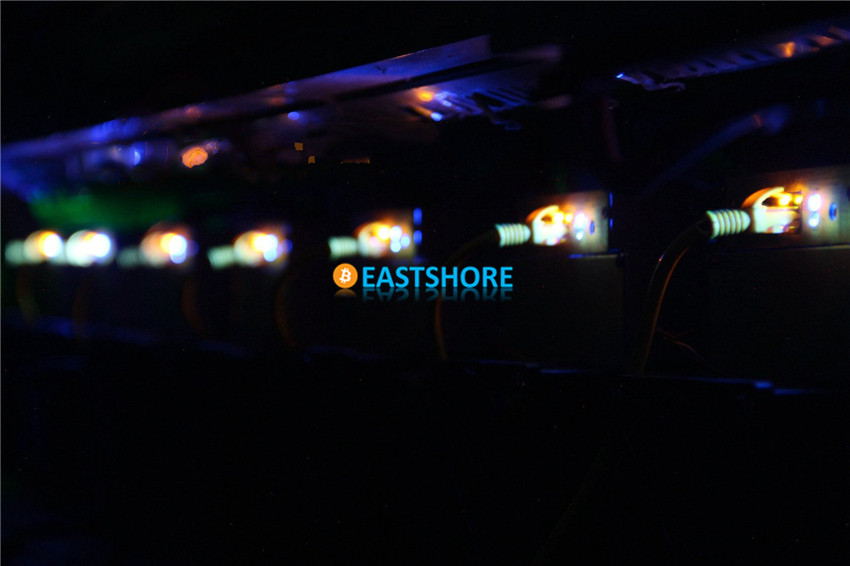

The light of Fusionsilicon X7 is relatively eye-catching. It’s blue during normal operation, which is very distinct at night. From a distance, the status indicator and the network indicator will present an effect of purple color.

Unboxing and Review for Dash Miner Fusionsilicon X7 IMG 04

Unboxing and Review for Dash Miner Fusionsilicon X7 IMG 05

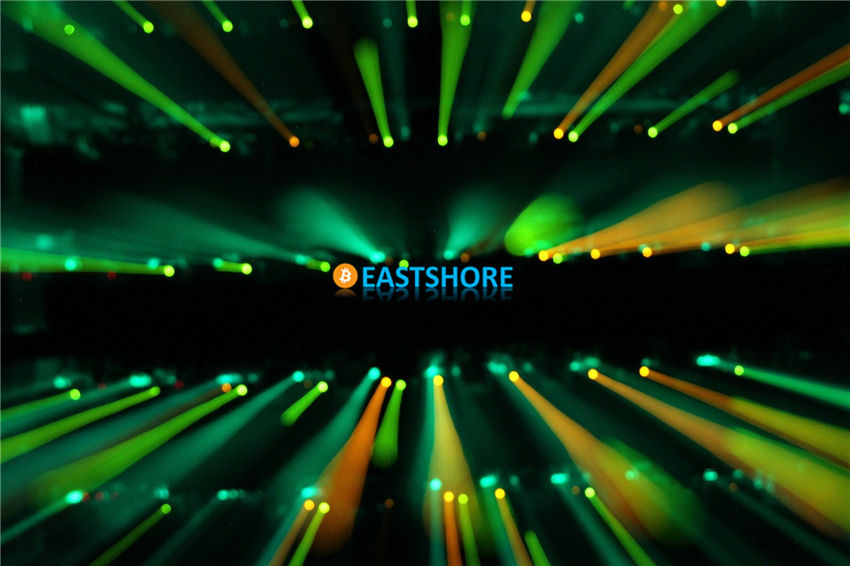

Night view on the mining farm

Unboxing and Review for Dash Miner Fusionsilicon X7 IMG 08

Unboxing and Review for Dash Miner Fusionsilicon X7 IMG 07



Brief Mining Guide

The use of Fusionsilicon X7 is very similar to that of Fusionsilicon X1. The following briefly introduces the mining steps of Fusionsilicon X7. For detailed mining tutorials, please refer to: Tutorial: FusionSilicon X1 12.5GH Lyra2rev2 Miner

  • Insert the power cords of hash board and control board
  • Insert network cable
  • Power on
  • Search miner IP address
  • Input miner IP address in browser
  • Input password “fusion” to enter the configuration page
  • Select “Miner Configuration” to modify mining information
  • Click on the “save&apply” on the lower right corner to complete the setup to start mining.

Unboxing and Review for Dash Miner Fusionsilicon X7 IMG 12

The “Mining Staus” page of Fusionsilicon X7 is simple and straightforward. The upper side shows the hashrate of the three hash boards. The “Restart” button can easily restart the miner. The four main menus are Miner Status, Configuration, Network and System. The information such as the operation time, real-time hashrate, average hashrate and receiving information of the pool are displayed very clearly.

FusionSilicon X7 262GH Dash Miner Speed Test



Performance Test

Mining in the f2pool(wallet anonymous mining is supported) shows that the hashrate fluctuations are not big and the 24-hour average exceeds the officially released 262G, that is, between 266 and 274G.

Unboxing and Review for Dash Miner Fusionsilicon X7 IMG 06

According to the test by using Antminer APW7 power supply, the actual power consumption of Fusionsilicon X7 is 1422.6W, which is slightly higher than the official parameter. After calculation, the unit power consumption ratio is 5.35W/G (1422.6/266).

FusionSilicon X7 262GH Dash Miner IMG 10



Summary

DASH, formerly known as Dark Coin, is a technical improvement based on Bitcoin. It has good anonymity and decentralization. It is the first cryptocurrency to protect privacy. We introduced some features of Dash before, please refer to: What’s the Charm of DASH?

At present, ASIC miners are used to mine DASH, including Antminer D5, Fusionsilicon X7, StrongU U6, Innosilicon A5 etc. Relatively speaking, Fusionsilicon X7 has a hashrate of 262G with a power consumption of 1420w. The comprehensive cost performance is relatively high. Those interested in DASH mining can give it a try.
