Review for Whatsminer D1 Decred Miner

Mining devices manufacturer Whatsminer has just released a new model named D1 for Decred mining. Whatsminer DCR is ASIC miner for Blake(14r) Algorithm , it can mine Decred (DCR) at hashrate of 44Th/s(+-6%), Power consumption is 2200w(+-10%).



About DCR currency

Decred is a multi-platform digital currency with support for Windows, macOS, and Linux. Easy-to-use wallet apps enable sending, receiving, and mining Decred with just a few clicks.

Review for Whatsminer D1 Decred Miner IMG 29

Some Details & Currently Network Status

Currency name Decred
In short DCR
Token amount 21 million
Launched in February 2016
Script algorithms PoW+PoS
Algorithm Blake256 r14
Difficulty adjust Every 144 blocks
Currency listed on Binance, Okex, ShapeShift etc.

Review for Whatsminer D1 Decred Miner IMG 30



Product Specifications

Brand Whatsminer D1
Hash rate 44TH/s ± 5%
Chip 16nm FinFET Compact
PCB board quantity 3
Power consumption 2200w
Efficiency ratio 50W/TH ± 10%
Size 385mm(L) x 155mm(W) x 239mm(H)
Weight 8.55 kg



Packaging

  • This is how you will receive the product

Review for Whatsminer D1 Decred Miner IMG 22

  • Label on the box

Review for Whatsminer D1 Decred Miner IMG 23

  • Power cable included. Specifications: 3*1.5mm, 10A

Review for Whatsminer D1 Decred Miner IMG 24

  • This is how the miner looks

Review for Whatsminer D1 Decred Miner IMG 25

  • The power supply is built on the miner.

Review for Whatsminer D1 Decred Miner IMG 26

  • Power supply specifications: 2250W,12.5V*180A, 12V*10A; fans: 6.4A

Review for Whatsminer D1 Decred Miner IMG 27

  • Ports on the miner

Review for Whatsminer D1 Decred Miner IMG 28

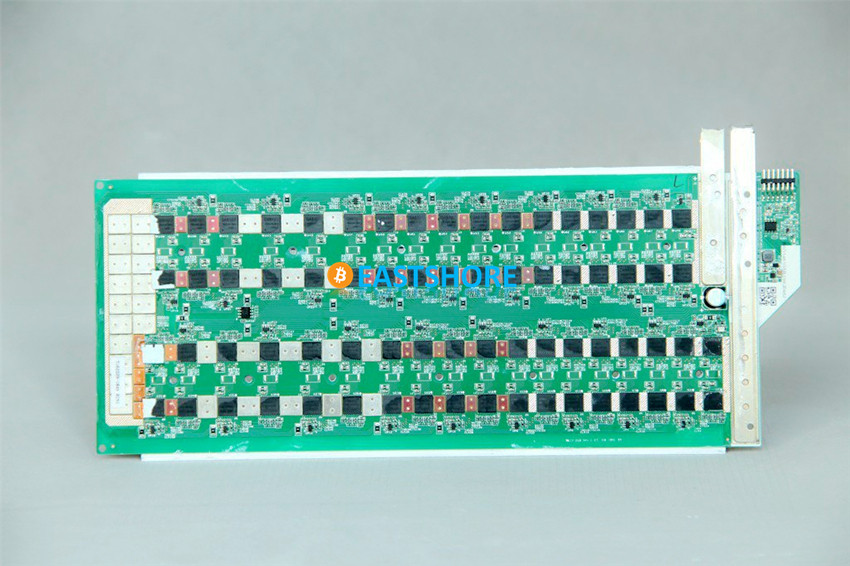

  • When disassembled as in the following picture, we can see the 3 hash boards. Each board has 70 QA5100 chips.

Review for Whatsminer D1 Decred Miner IMG 01

Review for Whatsminer D1 Decred Miner IMG 02

Review for Whatsminer D1 Decred Miner IMG 03

Review for Whatsminer D1 Decred Miner IMG 04

  • Disassembled miner (Please note, disassembling will void the warranty)

Review for Whatsminer D1 Decred Miner IMG 05

Review for Whatsminer D1 Decred Miner IMG 06

Review for Whatsminer D1 Decred Miner IMG 07

  • The controller

Review for Whatsminer D1 Decred Miner IMG 08



Settings

Review for Whatsminer D1 Decred Miner IMG 11

  • Miner status page

Review for Whatsminer D1 Decred Miner IMG 10

Change the pool and worker info

  • Step1: Click “Configuration\CGMiner Configuration Logout”, “pool 1”. To take f2pool as an example: stratum+tcp://dcr.f2pool.com:5730
  • Step 2: Change worker info. F2pool supports mining without registering account in the pool. You can use your DCR wallet address as the worker name to mine in the pool.
  • Step 3: Change the password as needed
  • Step 4: Change the backup pool address as needed.

Review for Whatsminer D1 Decred Miner IMG 12

  • Step 5: Change the IP address (for farm mining, no need to do this step for smaller quantity of miners). Click “Configuration/Interfaces” to enter the page, click “Edit” to set the IP as static IP.

Review for Whatsminer D1 Decred Miner IMG 13

  • Step 6: After above changes made, click “Status/CGMiner Status” to go back to the status home page, and click “Restart CGMiner”

Review for Whatsminer D1 Decred Miner IMG 14



Performance Report

  • After turning on, before it starts working, the power consumption is 28w, noise level 77dB, room temperature nearly 20℃

Review for Whatsminer D1 Decred Miner IMG 15

  • After working for 10 minutes, the noise level raises to around 80 dB, power consumption 2120w.

Review for Whatsminer D1 Decred Miner IMG 16

  • Temperature at air input is around 20℃, and 35℃ at air output

Review for Whatsminer D1 Decred Miner IMG 17

  • Temperature of the miner: air input side 21.4℃;body:40℃;end: 33℃;air output side 60℃

Review for Whatsminer D1 Decred Miner IMG 18

  • Air velocity at the air output is 7.4m/s

Review for Whatsminer D1 Decred Miner IMG 19

  • Hash speed in f2pool is 48TH/s

Review for Whatsminer D1 Decred Miner IMG 20

  • 24 hour profit in f2pool: 1.135DCR(on 2018/11/30).
  • Status page of working 24 hours, chip temperature is around 70℃

Review for Whatsminer D1 Decred Miner IMG 21



Conclusion

  • Built-on power supply makes it easier to install.
  • It is the most powerful DCR miner at the moment. And power efficiency is kept as low as 45W/T.
  • Performance is steady.
