Review for Canaan Mining Heater

No Comments 2411 Views6


Review for Canaan Mining Heater

In September 2018, cryptocurrency hardware manufacturer Canaan announced a novel product-a mining heater. According to official specifications: the product with the model name A851H, has a hash speed of 14.5TH/S@1450w/h, the efficiency ratio is 100w/T and it integrates 104 A3210M chips of 16nm.

In this review we will show as many details as possible.



Product Specifications

Brand Canaan Mining Heater
Model A851H
Average Hashspeed(24H) 14.8 TH/s
Power Consumption 1700w
Chip 16nm A3210M x 104
Temperature(Heater) 32-39 ℃
Air Output Velocity 2.3 M/s
Noise 50-62 dB



Product look

  • This is how you will receive the product.

Review for Canaan Mining Heater IMG 28

  • Accessories are in the 2 small boxes

Review for Canaan Mining Heater IMG 27

  • Careful packaging

Review for Canaan Mining Heater IMG 26

Review for Canaan Mining Heater IMG 24

  • This is how the heater looks.

Review for Canaan Mining Heater IMG 25

  • Back of the heater. The mining part and power supply is set at the bottom

Review for Canaan Mining Heater IMG 23

  • An AUC cable prepared for connecting AUC and raspberry Pi

Review for Canaan Mining Heater IMG 22

  • On both sides of the heater, there are water input and power input ports

Review for Canaan Mining Heater IMG 05

  • In one of the accessories boxes, there are: 1 AUC, 1 raspberry Pi, 1 USB cable, 1 USD adapter and the manual.

Review for Canaan Mining Heater IMG 21

  • In another box, there are: 1 power cable, 2 bottom braces, 4 screws, 1 funnel and 1 PTFE seal tape

Review for Canaan Mining Heater IMG 20

  • The mining controller is Raspberry Pi 3, and a power adapter of 5V 2A included.

Review for Canaan Mining Heater IMG 19



Installation

  • Install the bottom braces

Review for Canaan Mining Heater IMG 18

  • Take out the plug on the input. Wrap the mouth of the funnel with the PTFE tape and install the funnel.

Review for Canaan Mining Heater IMG 17

  • Connect AUC3 to the AUC cable on the back of the heater.

Review for Canaan Mining Heater IMG 16

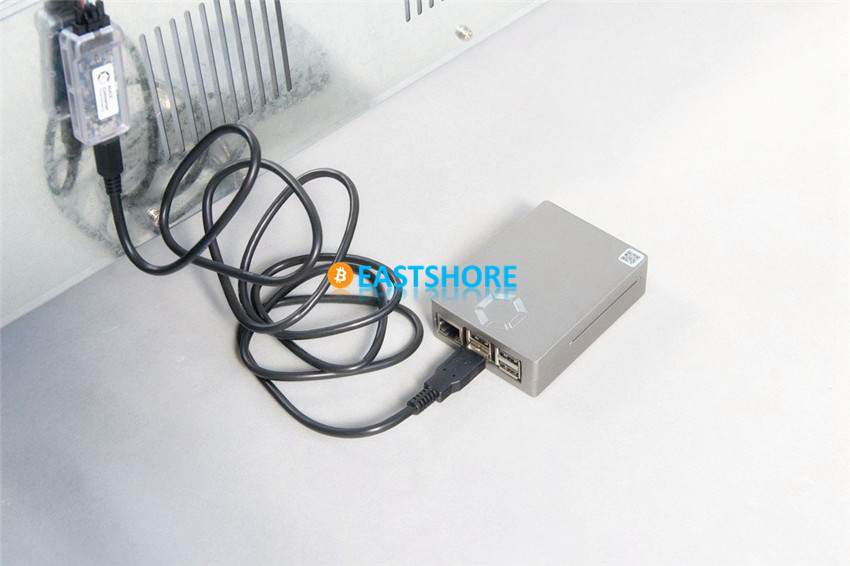

  • Use the USD cable to connect the AUC3 to the raspberry Pi.

Review for Canaan Mining Heater IMG 15

  • Use the USB cable to connect the power adapter and the raspberry Pi.

Review for Canaan Mining Heater IMG 14

  •  Connect the Ethernet cord to the raspberry Pi.

Review for Canaan Mining Heater IMG 29

  • Connect the power cable. Please note the specification of the power cable is 16A.

Review for Canaan Mining Heater IMG 13

  • Input purified water into the heater. The amount of water needed is around 2000ML.

Review for Canaan Mining Heater IMG 12



Configuration

  • The default IP of the raspberry Pi is 192.168.0.100. You need to modify your router’s network section to 192.168.0.X (X stands for a number in the range of 0-255)
  • Connect the heater to your router. Then, in your browser, enter 192.168.0.100 to the management page. Defaultly, no password required.

Review for Canaan Mining Heater IMG 04

  • On the page of Status/CGMiner Configuration to change the pool, work info, etc.

Review for Canaan Mining Heater IMG 02

  • On the page of Status/CGMiner Status, you can check the performance of the miner.

Review for Canaan Mining Heater IMG 01

Review for Canaan Mining Heater IMG 03



Performance

  • Under the room temperature of 18℃, before the miner start working, the power consumption is around 32w, noise 61dB.

Review for Canaan Mining Heater IMG 10

  • In about 5 minutes, the miner starts working and generating heat. The temperature around the heater raises to 32℃.

Review for Canaan Mining Heater IMG 09

  • Power consumption is at a range of 1670 – 1690W

Review for Canaan Mining Heater IMG 08

  • Noise level around 60dB, from 1 meter away noise level is around 50dB.

Review for Canaan Mining Heater IMG 07

  • Air output velocity is 2.3m/s.

Review for Canaan Mining Heater IMG 06

  • After working for 6 hours, in the F2pool, it shows the hash rate of the product is 14.8TH.

Review for Canaan Mining Heater IMG 30



Conclusion

The product has the following features:

  • Avoids heat waste while mining.
  • Water circulation increases humidity in the room.
  • Noise level contained at relatively lower level than regular miners.
  • No other tool needed to install.
