Introduction to Mobile Mining Farm Bitmain ANTBOX N01

The Antbox is the product of Bitmain released in March 2018. It is basically a small mining farm fits into a container. It can hold as many as 324 units of S9 miner. This product saves the trouble of building a mining farm from scratch.

We visited the manufacturer in Shenzhen, in this piece, we will reveal more details about this product.



Antbox Parameters

Brand Antbox
Internal dimensions 5640*2110*2765mm (L*W*H)
External dimensions 5850*2300*3070mm (L*W*H)
Current 731A
Voltage 380V
Power 486KW
Incoming cable (YJV-0.6/1KV 400)*4+YJV-0.6/1KV 240*1
3150KVA transformer can support 6 ANTBOX work
2500KVA transformer can support 5 ANTBOX work
Loading and unloading Users need to bring their own 5-10 tons of cranes to load and unload ANTBOX
Accessories ANTBOX does not contain the following components: transformers, stairs, walkway boards, cables, bridges, cable distribution boxes, etc.
Note Before using ANTBOX, users need to do the ground hardening to ensure the stability of the environment during mining. Generally, a single ANTBOX is required to complete 6 tons of ground hardening work.



Product Specifications

The Antbox looks just like a container which is made of high strength steel. The size is: 5.85m*2.3m*3.07m. The weight is around 3 tons.

Introduction to Mobile Mining Farm Bitmain ANTBOX IMG 60

The box is covered in glazed varnish which is moist resistant.

Introduction to Mobile Mining Farm Bitmain ANTBOX IMG 62

In the corners, there are holes for fixating.

Introduction to Mobile Mining Farm Bitmain ANTBOX IMG 61

The door is equipped with smart lock which opens with the key or swiping the card.

Introduction to Mobile Mining Farm Bitmain ANTBOX IMG 63

Introduction to Mobile Mining Farm Bitmain ANTBOX IMG 64

The blinds of the windows are made of steel which can be adjusted by hydraulic pump.

Introduction to Mobile Mining Farm Bitmain ANTBOX IMG 65

Introduction to Mobile Mining Farm Bitmain ANTBOX IMG 66

Introduction to Mobile Mining Farm Bitmain ANTBOX IMG 67

Introduction to Mobile Mining Farm Bitmain ANTBOX IMG 68

The net behind the blinds is made of iron net, plastic net and dust-preventing net.

Introduction to Mobile Mining Farm Bitmain ANTBOX IMG 69

The side of air outlet.

Introduction to Mobile Mining Farm Bitmain ANTBOX IMG 10

Inside of the ANTBOX, on the left it is the shelf to place the miners, and on the right, it is the power controller.

Introduction to Mobile Mining Farm Bitmain ANTBOX IMG 12

Introduction to Mobile Mining Farm Bitmain ANTBOX IMG 11

Introduction to Mobile Mining Farm Bitmain ANTBOX IMG 13

There are 3 rows of shelves, each shelf has 9 levels. Each level has an independent air switch and can hold 12 sets of miners and accessories. In total, the Antbox can accommodate 324 units miners.

Introduction to Mobile Mining Farm Bitmain ANTBOX IMG 14

Introduction to Mobile Mining Farm Bitmain ANTBOX IMG 16

Light above the Antbox.

Introduction to Mobile Mining Farm Bitmain ANTBOX IMG 15

The very inside of the Antbox。

Introduction to Mobile Mining Farm Bitmain ANTBOX IMG 17

3cm thick of insulation of the floor.

Introduction to Mobile Mining Farm Bitmain ANTBOX IMG 18

The windows are placed on each side of the box, the top and bottom are enclosed.  One side is installed with cooling curtain to cool down the air outlet. This is better than using fans in traditional farms.

Introduction to Mobile Mining Farm Bitmain ANTBOX IMG 19

Introduction to Mobile Mining Farm Bitmain ANTBOX IMG 20

Introduction to Mobile Mining Farm Bitmain ANTBOX IMG 21

In addition, 6 ways of multiple-unit assembling are supported by the manufacturer to cater to different needs.

Introduction to Mobile Mining Farm Bitmain ANTBOX IMG 22

The box we observed has been sitting outdoors for a while, but inside there is no sign of any wear.

The manufacturer provides technical support for this product and the warranty is a year.



Installation

There are 3 requirements to meet for using the ANTBOX:weight-supporting, power and space.

  1. First, to take S9 as an example, each S9 weighs 4.1kg, each power supply weighs 2kg, so324 units will weigh about 2 tons. With the weight of the box itself, the position to place the box should be able to support a weight of 5 tons.
  2. Second, power consumption of each S9 is around 1400w, in total the Antbox requires 500kw of power.
  3. Third, for ventilation, the air inlet on the right side needs around 16 meters of space and the left side 10 meters.

Installation is not difficult. First, connect power source to the miner.

Introduction to Mobile Mining Farm Bitmain ANTBOX IMG 23

Then put it on the shelf, the power supply is placed above the miner, and connect the ethernet cords and power cables.

Introduction to Mobile Mining Farm Bitmain ANTBOX IMG 24

Introduction to Mobile Mining Farm Bitmain ANTBOX IMG 25

Introduction to Mobile Mining Farm Bitmain ANTBOX IMG 26

Each level of the shelf is about 26.5 high, which can accommodate most miner models and submodels of the manufacturer, as you can see in the following picture.

Introduction to Mobile Mining Farm Bitmain ANTBOX IMG 27

ANTBOX comes along with mining monitor software. It is convenient to monitor and control it.

Introduction to Mobile Mining Farm Bitmain ANTBOX IMG 28



Mining farm with Antbox combinations

The first combination consists of 6 Antboxes placed as 2 levels. The second combination consists of 8 Antboxes.

Introduction to Mobile Mining Farm Bitmain ANTBOX IMG 29

To the left in the picture, there is a door on each level. And there is a ladder leading to the second level.

Introduction to Mobile Mining Farm Bitmain ANTBOX IMG 30

Introduction to Mobile Mining Farm Bitmain ANTBOX IMG 31

On the same side with the ladder, it is the air outlet. As you can see through the blinds, there are different models of miners. 16 Antbox contains 4536 units of miners.

Introduction to Mobile Mining Farm Bitmain ANTBOX IMG 32

Introduction to Mobile Mining Farm Bitmain ANTBOX IMG 33

Introduction to Mobile Mining Farm Bitmain ANTBOX IMG 34

The 4536units take up about 100㎡. And there is space left for ventilation as you can see.

Introduction to Mobile Mining Farm Bitmain ANTBOX IMG 35

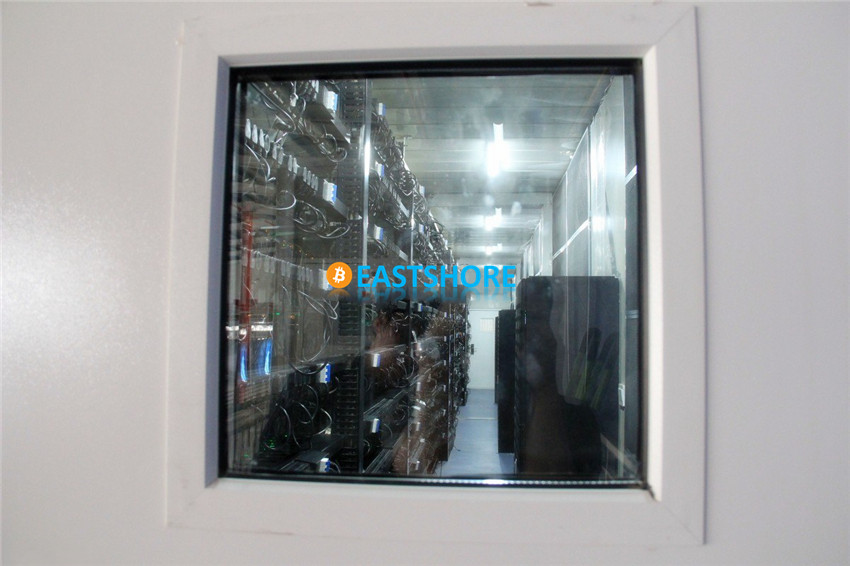

There are 2 small windows for looking into inside.

Introduction to Mobile Mining Farm Bitmain ANTBOX IMG 36

The water cooling curtains on the back pumps up water from the water tanks.

Introduction to Mobile Mining Farm Bitmain ANTBOX IMG 37

Introduction to Mobile Mining Farm Bitmain ANTBOX IMG 38

The water recycles but needs to be filled up from time to time.

Introduction to Mobile Mining Farm Bitmain ANTBOX IMG 39

The following picture shows the inside of the combinations. On the right side, it is the power control cabinet.

Introduction to Mobile Mining Farm Bitmain ANTBOX IMG 40

Fire extinguishers by the door.

Introduction to Mobile Mining Farm Bitmain ANTBOX IMG 41

Miners in working.

Introduction to Mobile Mining Farm Bitmain ANTBOX IMG 42

Introduction to Mobile Mining Farm Bitmain ANTBOX IMG 43

Introduction to Mobile Mining Farm Bitmain ANTBOX IMG 45

The temperature inside is 19℃.

Introduction to Mobile Mining Farm Bitmain ANTBOX IMG 44

The small screen on the power control cabinet shows the power conditions.  Under the green and red rights, there are 3 switches, which are the blinds controls.

Introduction to Mobile Mining Farm Bitmain ANTBOX IMG 46

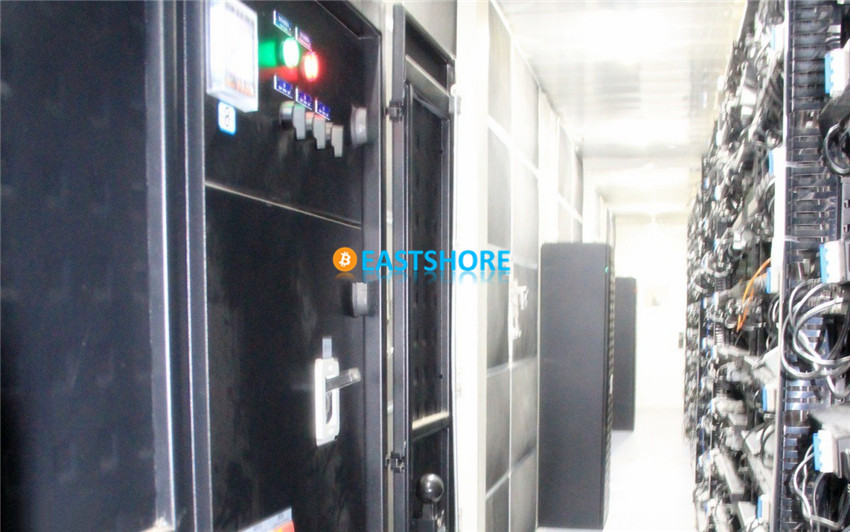

Below, it is the master switch.

Introduction to Mobile Mining Farm Bitmain ANTBOX IMG 47

The below three red switches controls each of the 3 rows of the shelf.

Introduction to Mobile Mining Farm Bitmain ANTBOX IMG 48

The back of the shelves, i.e., the air outlet side.

Introduction to Mobile Mining Farm Bitmain ANTBOX IMG 49

Temperature near the water curtains is 15℃.

Introduction to Mobile Mining Farm Bitmain ANTBOX IMG 51

Temperature of the miner inlet is 31℃.

Introduction to Mobile Mining Farm Bitmain ANTBOX IMG 50

Temperature of the miner inlet is 42℃.

Introduction to Mobile Mining Farm Bitmain ANTBOX IMG 53

The noise level inside is 82dBa.

Introduction to Mobile Mining Farm Bitmain ANTBOX IMG 52

The noise level near the air outlet is 80dBa。

Introduction to Mobile Mining Farm Bitmain ANTBOX IMG 55

The noise level 10 meters away from the Antbox is 76dBa。

Introduction to Mobile Mining Farm Bitmain ANTBOX IMG 54

Picture of some other details.

Introduction to Mobile Mining Farm Bitmain ANTBOX IMG 57

Introduction to Mobile Mining Farm Bitmain ANTBOX IMG 56

Introduction to Mobile Mining Farm Bitmain ANTBOX IMG 58

Introduction to Mobile Mining Farm Bitmain ANTBOX IMG 59



Conclusion

  • ANTBOX is a product with high technology standards. It can bring great convenience to massive mining.
  • The temperature control is sophisticated. With the water curtains, the temperature is kept as low as 19℃ which helps with the stability of mining performance.
  • Noise is kept very low.
  • The design and look of the product is simple, practical and of great quality.
  • Safety is ensured by insulated floors and professional power control.
  • Great convenience. It’s mobile and easy to set up.
  • With the remote monitoring software, it’s convenient to control the farm.
  • Consultation and customization provided by the manufacturer. One year warranty provided.
