In-depth Evaluation on Dismantling of Goldshell X5 Litecoin Miner

No Comments 1662 Views0


Evaluation on Dismantling of Goldshell X5 Litecoin Miner IMG 30

Goldshell X5 Litecoin miner is the latest blockchain high performance computing device launched by China Huzhou Yihong Intelligent Technology Co., Ltd., which supports the Scrypt algorithm. It was released for presale on the official website in May, 2018 at the price of 6,299 RMB.

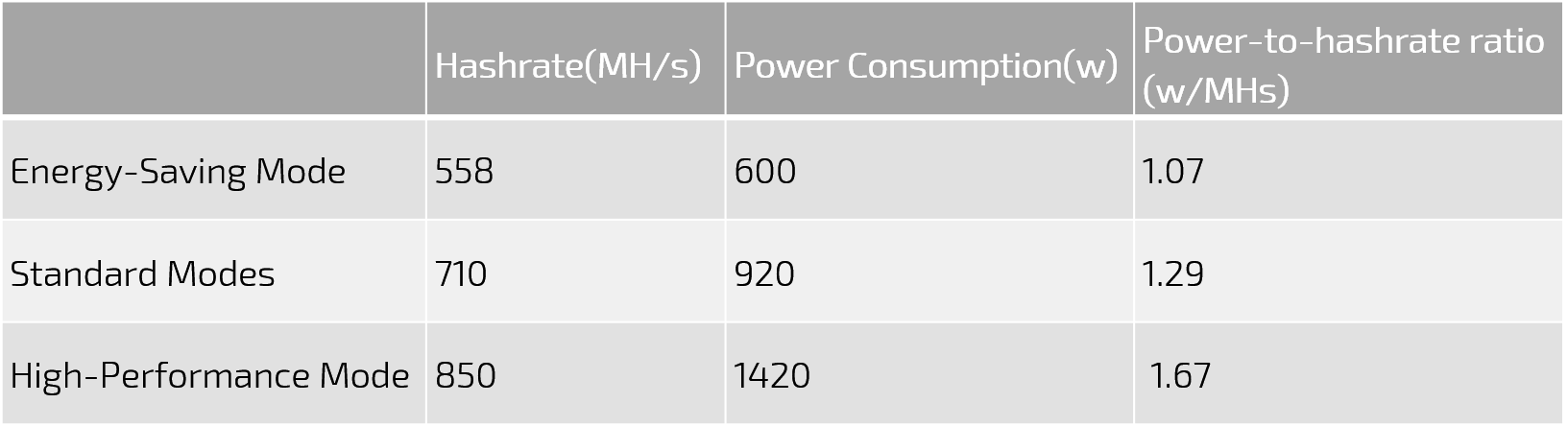

According to the official website, Goldshell X5 is the most powerful Scrypt miner in current market with the hashrate of up to 850 MH/s. The released parameters are as follows:

Evaluation on Dismantling of Goldshell X5 Litecoin Miner N02

We have made evaluation on Goldshell X5 as follows.



External Appearance

Goldshell X5 adopts the design of double fans in the front and rear.

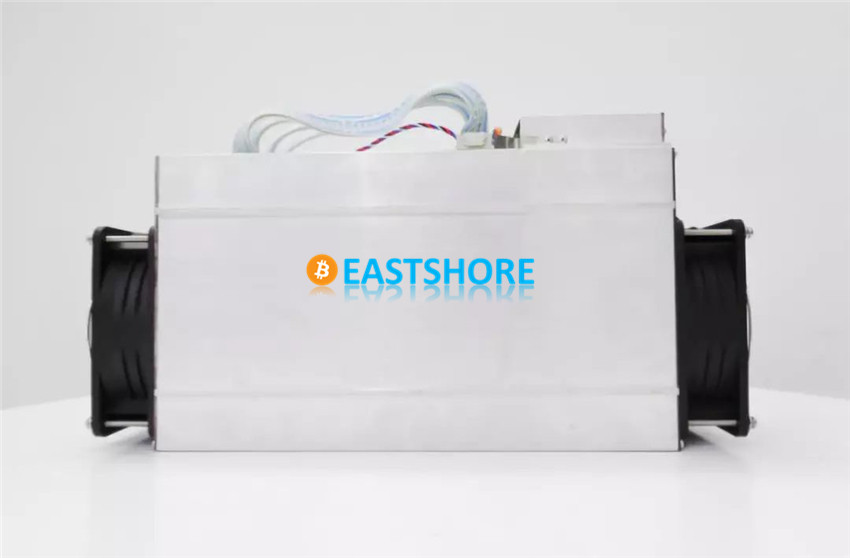

Evaluation on Dismantling of Goldshell X5 Litecoin Miner IMG 18

Evaluation on Dismantling of Goldshell X5 Litecoin Miner IMG 28

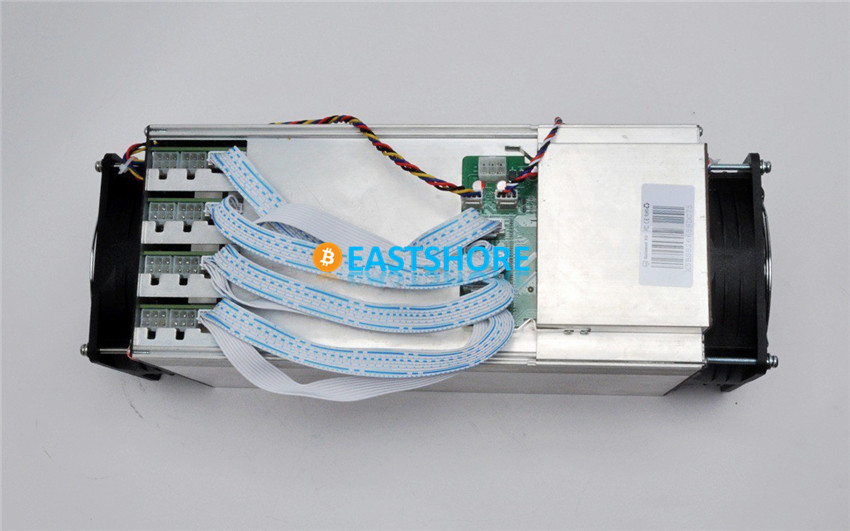

Top view: The miner includes four hashrate boards, each contains two groups of power interfaces and is controlled by the control board through four connecting cables.

Evaluation on Dismantling of Goldshell X5 Litecoin Miner IMG 20

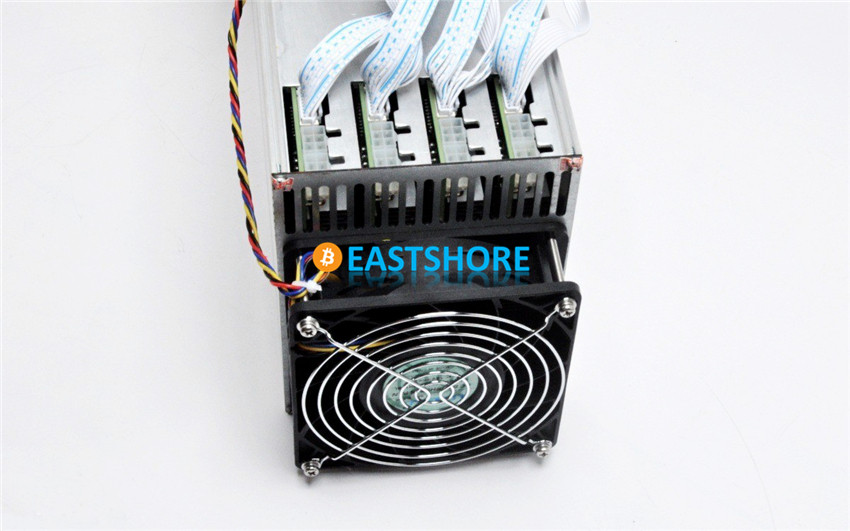

Air outlet in the rear of the miner. Same fan size with other miners including Antminer, 12cm x 12cm x 3.8cm.

Evaluation on Dismantling of Goldshell X5 Litecoin Miner IMG 21

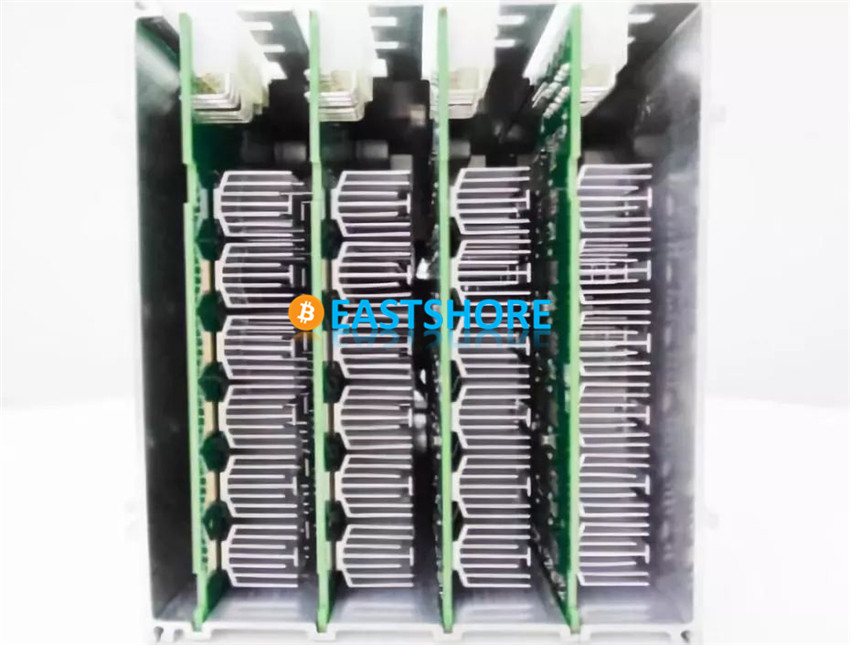

Same internal structure with other miners, hashrate boards are fixed by guide rails.

Evaluation on Dismantling of Goldshell X5 Litecoin Miner IMG 32

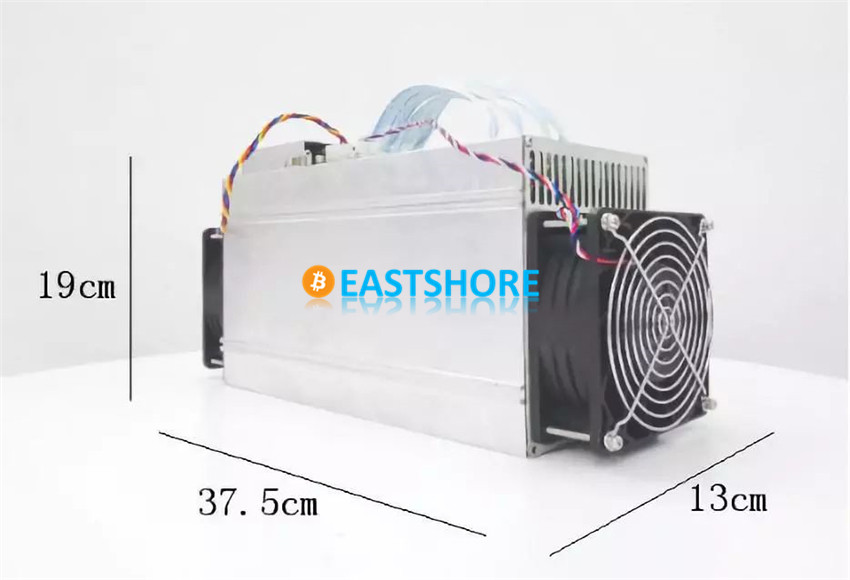

Dimensional parameters are shown as follows (slightly different due to manual measurement).

Evaluation on Dismantling of Goldshell X5 Litecoin Miner IMG 33

We have following doubts when confirming the external appearance:

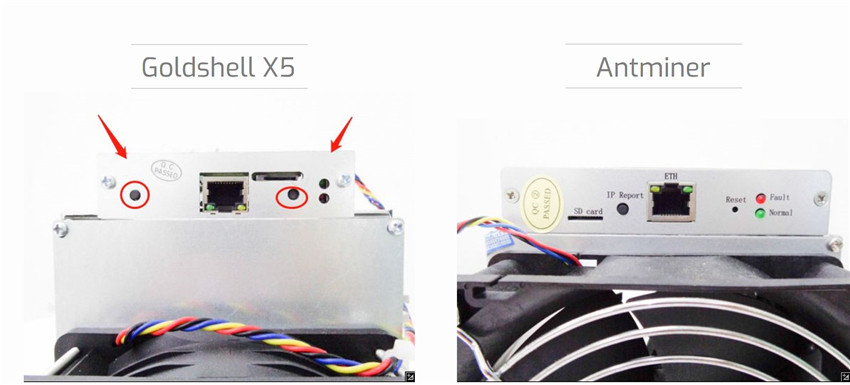

  • No indications of control board functions. Compared with Antminer, the indications are very clear:

Evaluation on Dismantling of Goldshell X5 Litecoin Miner IMG 25

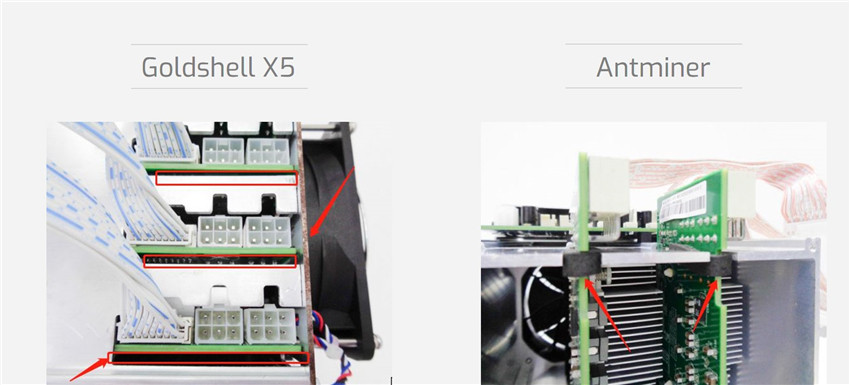

  • Obvious rusts on metal casing (the rusts may be aggravated if being placed in mining farm). As shown below: insert EVA pads between the hashrate boards and the casing to avoid displacement of hashrate boards.

Evaluation on Dismantling of Goldshell X5 Litecoin Miner IMG 26

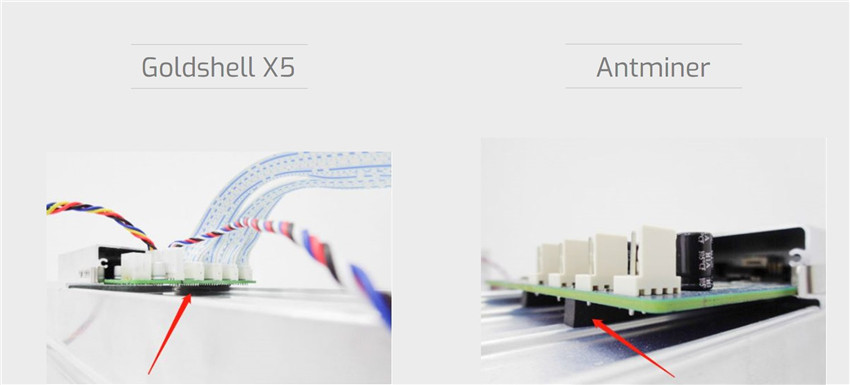

  • Main control board is only fixed by guide rails. When installing the PCBA, it is recommended to insert EVA pads on the bottom for enforcement.

Evaluation on Dismantling of Goldshell X5 Litecoin Miner IMG 27



Actual Operational Test

Power supply for test is provided by manufacturer, the mode is: Goldshell G1100-1800W.

Miner connection and configuration

  • Connect power cord of hashrate board and control board
  • Connect network cable and power cord
  • Power on

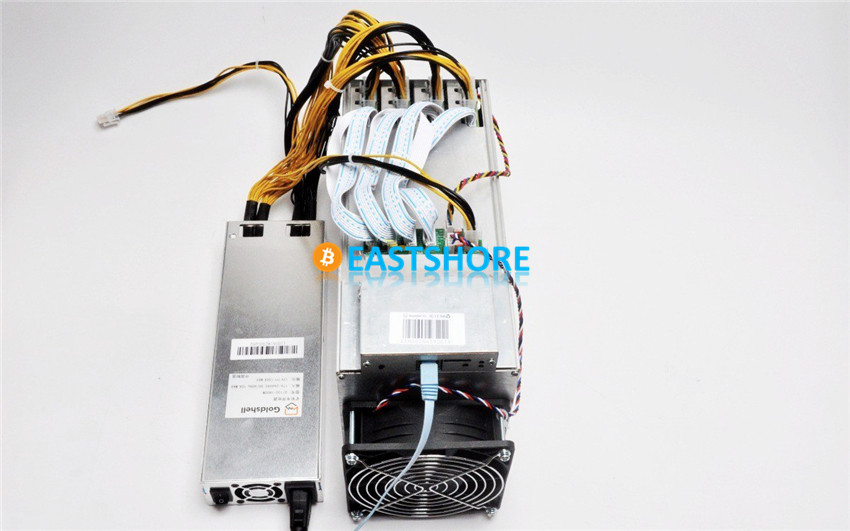

Evaluation on Dismantling of Goldshell X5 Litecoin Miner IMG 19

Evaluation on Dismantling of Goldshell X5 Litecoin Miner IMG 17

Miner information of Goldshell X5:

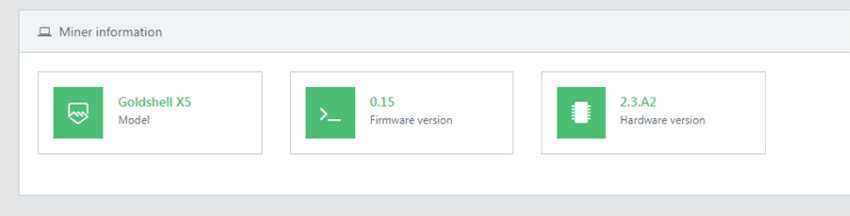

Evaluation on Dismantling of Goldshell X5 Litecoin Miner Screenshot 03



Data of The First Test

  • Test computer: (Lenovo X230 laptop)
  • Ambient temperature: 26℃
  • Test site: 30㎡ office, single miner

After the miner is powered on with settings, check the miner’s mining data.

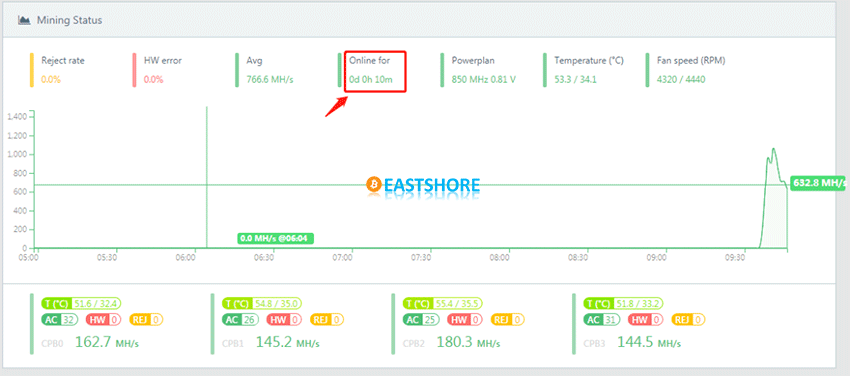

Online for 10 minutes (overall power: 1478W):

Evaluation on Dismantling of Goldshell X5 Litecoin Miner Screenshot 05

Online for 20 minutes (overall power: 1525W):

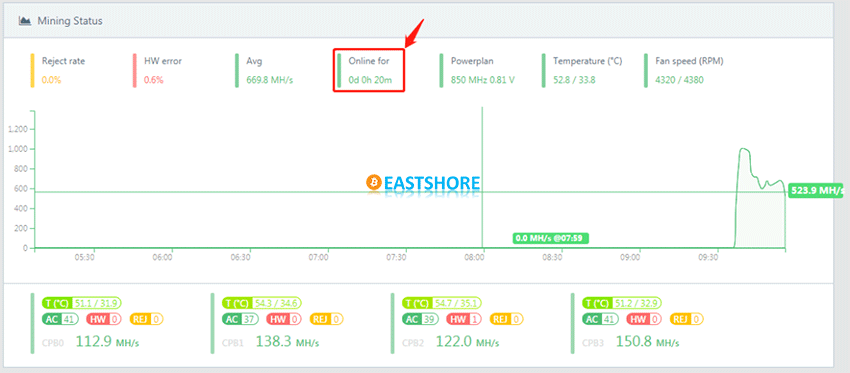

Evaluation on Dismantling of Goldshell X5 Litecoin Miner Screenshot 02

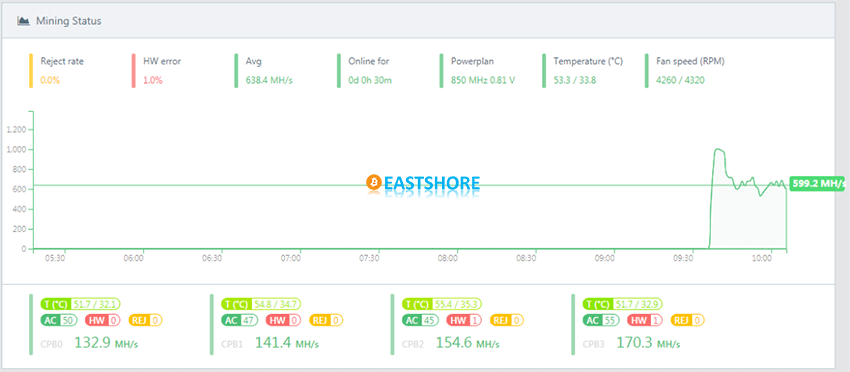

Online for 30 minutes:

Evaluation on Dismantling of Goldshell X5 Litecoin Miner Screenshot 08

Online for 1 hour:

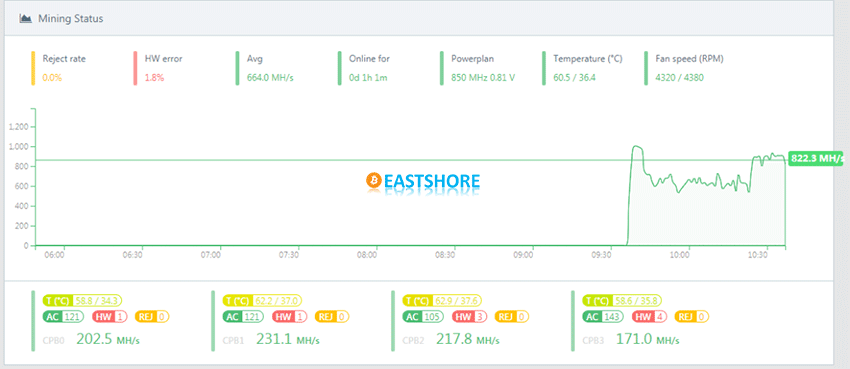

Evaluation on Dismantling of Goldshell X5 Litecoin Miner Screenshot 09

The mining data was normal when the machine was online for 1 hour 46 minutes. It’s scheduled to collect data again after being online for 2 hours, however, no information was found on the mining data page:

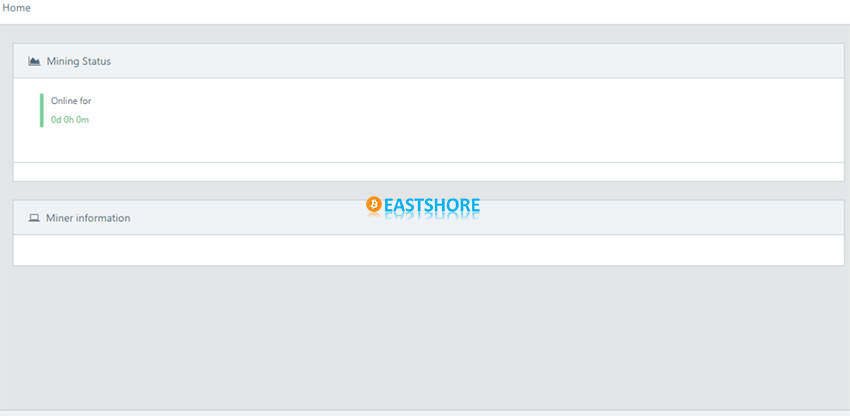

Evaluation on Dismantling of Goldshell X5 Litecoin Miner Screenshot 07

Without changes of IP address and abnormal computer operation, such a problem occurred in three consecutive tests on the machine. During test, the noise at the air intake was about 87dB (20cm away from the fan) and the temperature at the air outlet was 42.2℃.



Data of The Fourth Test (test computer and router replaced)

  • Test computer: HP ProBook4441s
  • Router: TP-LINK TL-WVR1200G Enterprise
  • Ambient temperature: 20℃

Start test after power-on, at power-on moment:

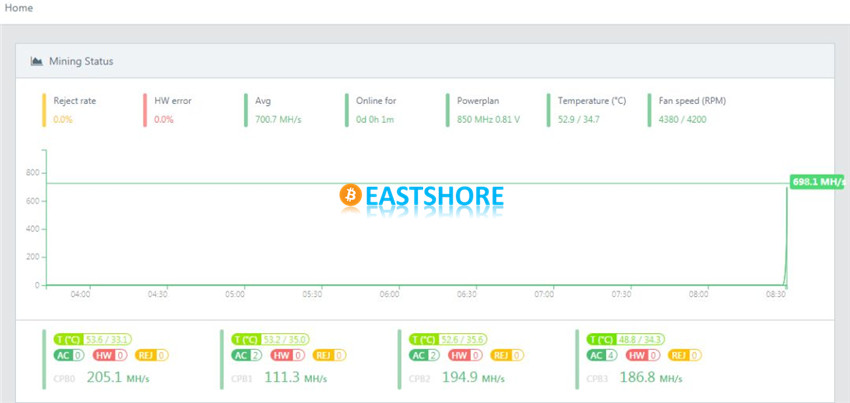

Evaluation on Dismantling of Goldshell X5 Litecoin Miner IMG 07

Online for 30 minutes:

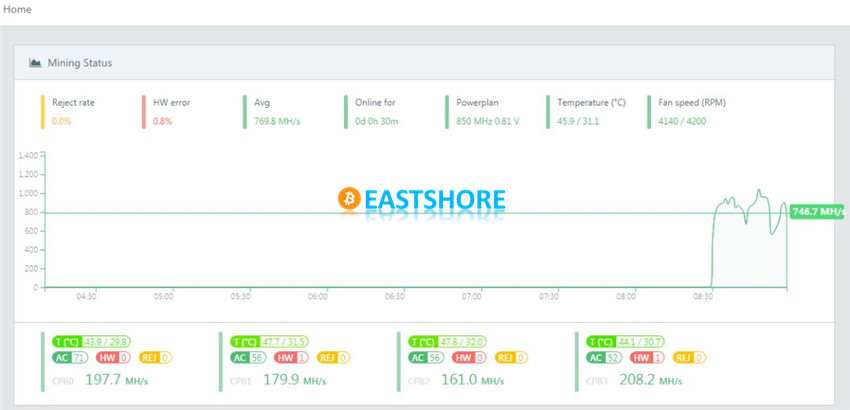

Evaluation on Dismantling of Goldshell X5 Litecoin Miner IMG 09

Online for 1 hour:

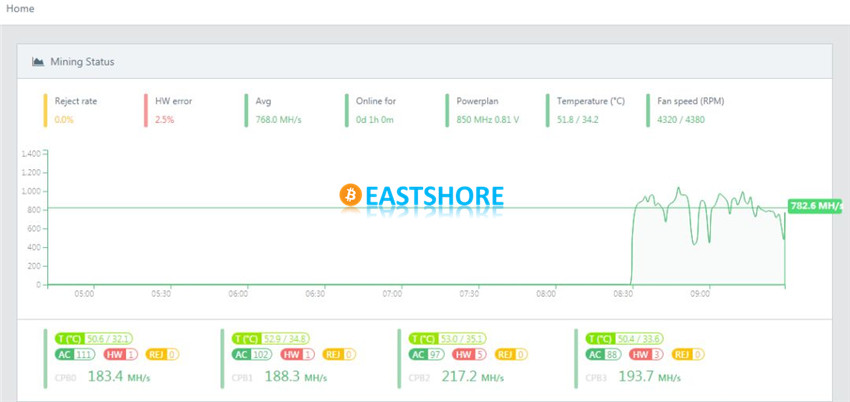

Evaluation on Dismantling of Goldshell X5 Litecoin Miner IMG 06

Online for 1 hour and 30 minutes:

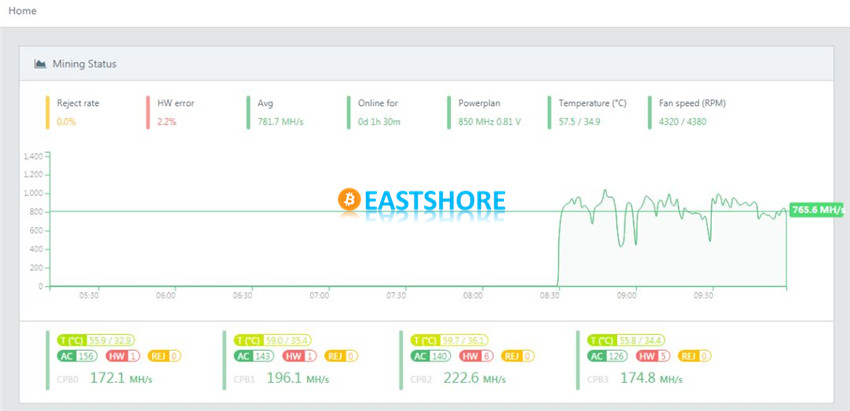

Evaluation on Dismantling of Goldshell X5 Litecoin Miner IMG 10

Online for 2 hours:

Evaluation on Dismantling of Goldshell X5 Litecoin Miner IMG 11

Online for 3 hours:

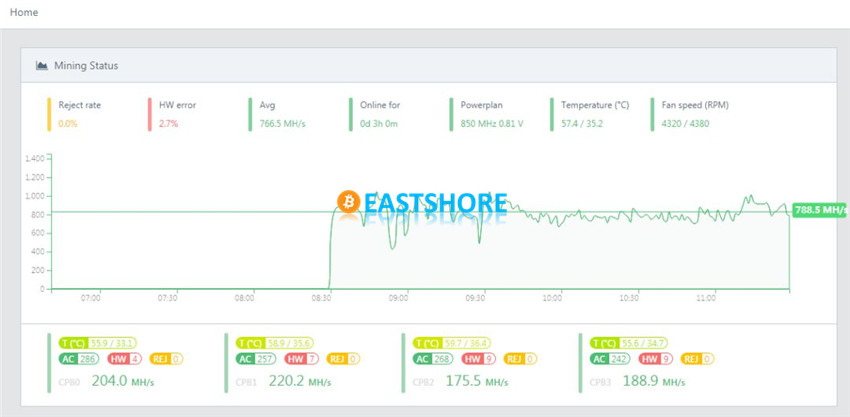

Evaluation on Dismantling of Goldshell X5 Litecoin Miner IMG 14

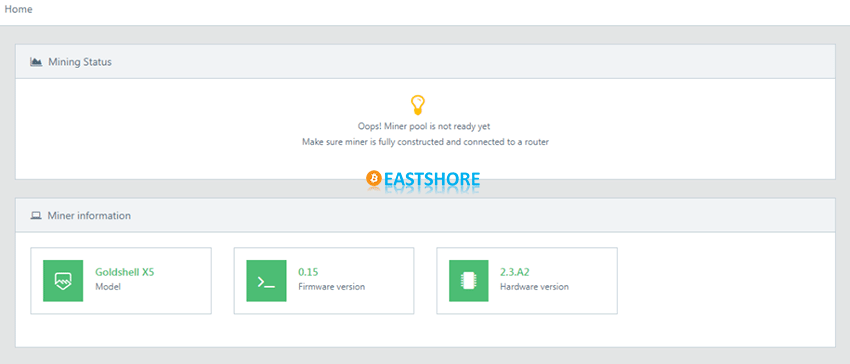

Without any operation on miner and computer, problem occurred again after being online for 3 hours and 8 minutes:

Evaluation on Dismantling of Goldshell X5 Litecoin Miner Screenshot 06

Enter IP address in the browser again to access to the miner status page:

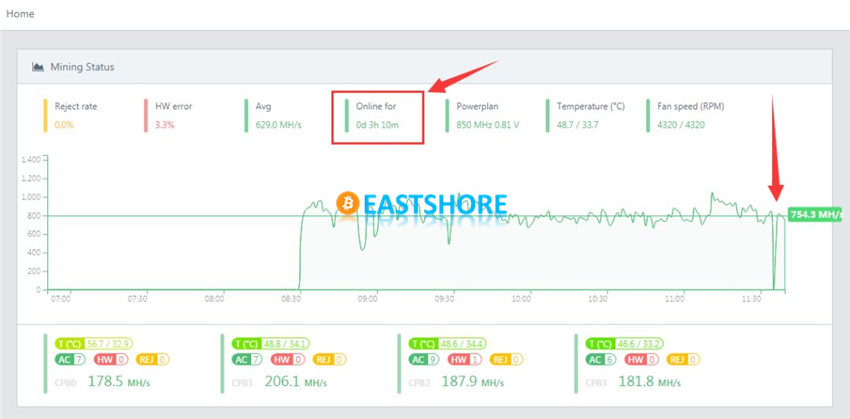

Evaluation on Dismantling of Goldshell X5 Litecoin Miner IMG 16

Keep the miner working for 5 hours to collect data:

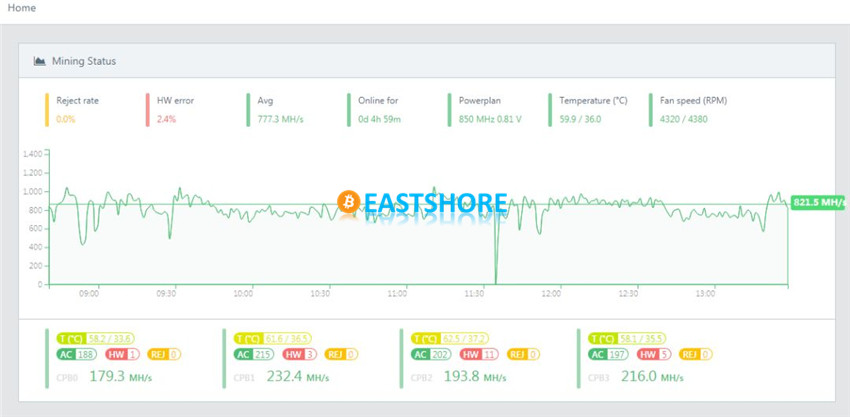

Evaluation on Dismantling of Goldshell X5 Litecoin Miner IMG 15

Mining information: HW error: 2.4%; Avg: 777.3MH/s

Overall power: 1525W

Noise: 88dB

Temperature at air outlet: 42℃

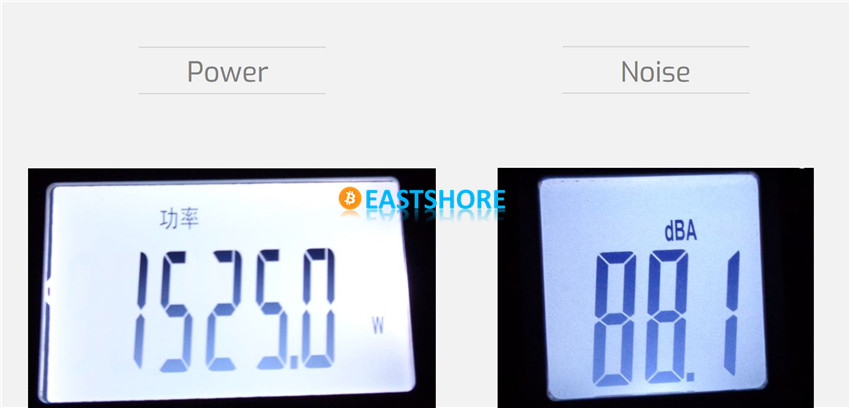

Evaluation on Dismantling of Goldshell X5 Litecoin Miner IMG 23



Abnormal data during test:

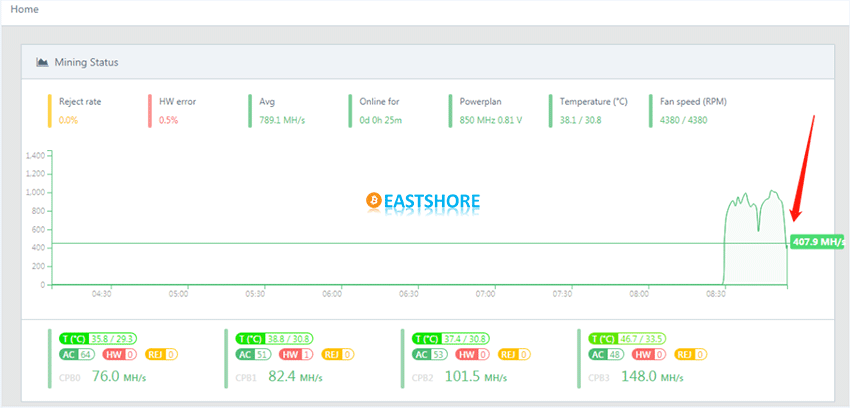

Big hashrate fluctuation (407MH/s):

Evaluation on Dismantling of Goldshell X5 Litecoin Miner Screenshot 01

and shown as follows:

Evaluation on Dismantling of Goldshell X5 Litecoin Miner Screenshot 11

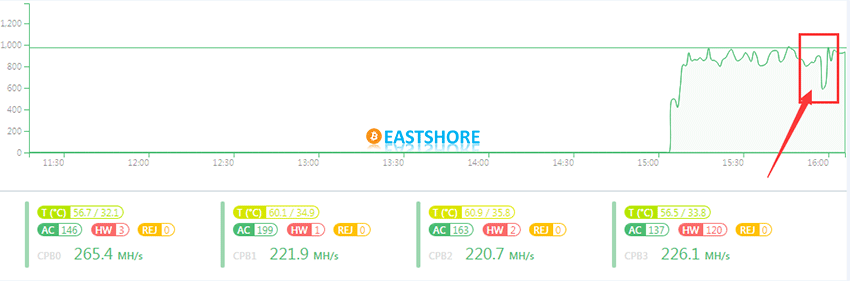

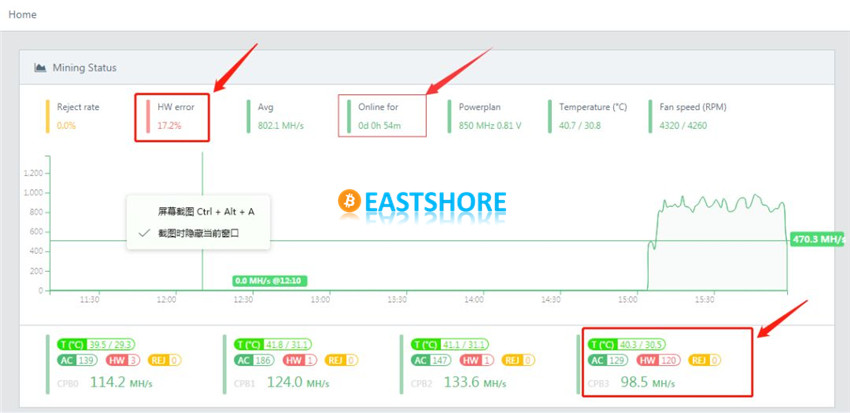

Too many HW errors at a certain time:

Evaluation on Dismantling of Goldshell X5 Litecoin Miner IMG 12

Evaluation on Dismantling of Goldshell X5 Litecoin Miner IMG 34

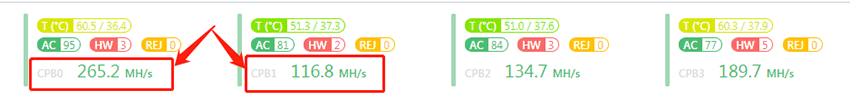

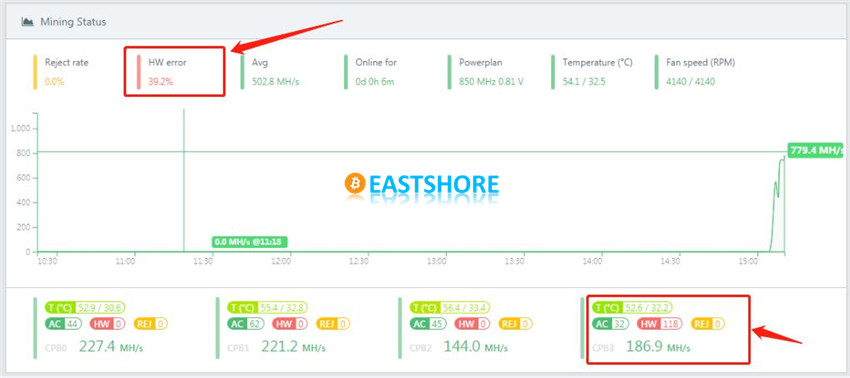

Big difference of 4 hashrate boards under the same working condition:

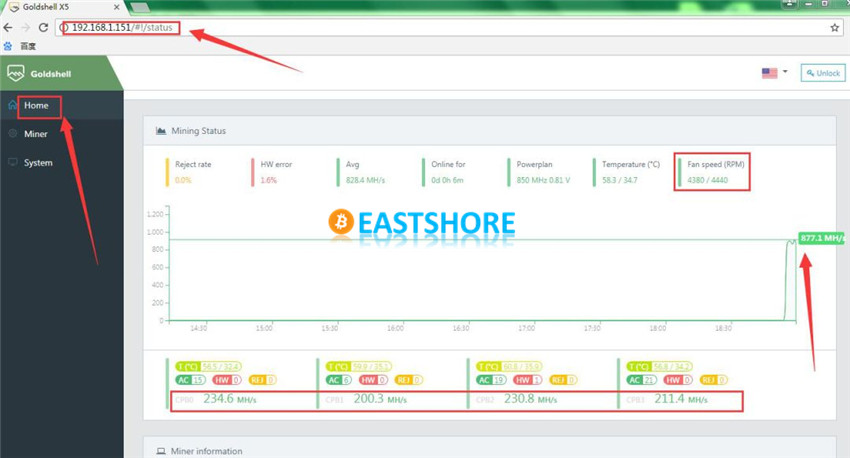

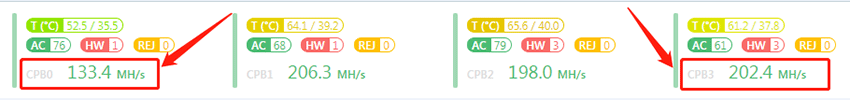

Evaluation on Dismantling of Goldshell X5 Litecoin Miner Screenshot 10

Evaluation on Dismantling of Goldshell X5 Litecoin Miner Screenshot 04



External Appearance of Hardware

Hashrate Board (TOP side)

Evaluation on Dismantling of Goldshell X5 Litecoin Miner IMG 24

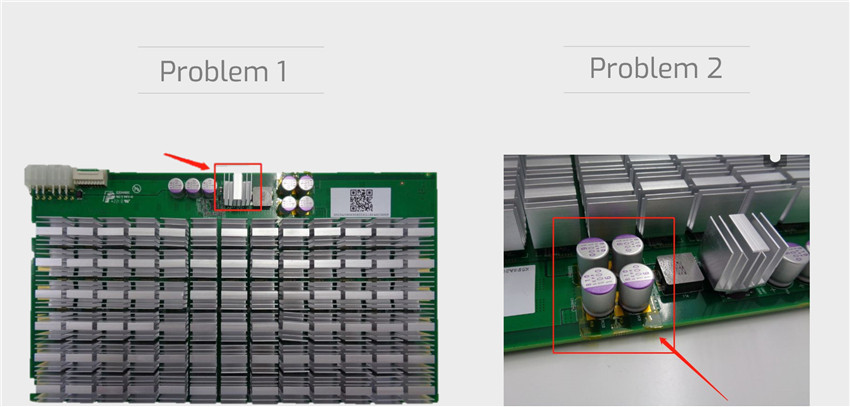

Problems:

  1. It’s recommended to rotate the direction of the heat sink of DC-DC chip on the hashrate board to be in consistent with the air channel of the machine.
  2. DC-DC loop is designed as the combination of SMD and DIP, however, the actual PCB LAYOUT package design is wrong. When DIP is adopted for capacitor package, it’s necessary to conduct insulation.

Miner Fan

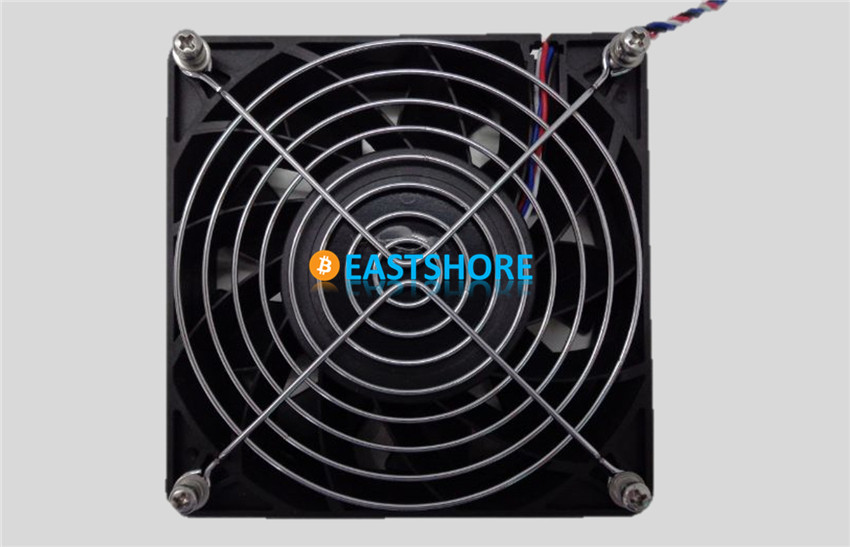

Evaluation on Dismantling of Goldshell X5 Litecoin Miner IMG 22

Problem:

  • No parameter tag on the front and back, it’s hard to confirm parameters and purchase materials for after-sales maintenance.



Summary

  • The miner is only tested in air-conditioning environment of the office now. The actual working conditions of mining farm are even worse, so the miner status needs to be further tested.
  • Compared with other Litecoin miners (Antminer L3 + noise about 83dB), the miner noise seems to be slightly higher.
  • When the miner is moved, the shaking sound of hashrate boards can be heard. It’s recommended to insert EVA pads between the hashrate boards and the casing to absorb the vibration, then conduct the vibration drop test to confirm the firmness of the heat sink of hashrate board chip.
