Evaluation on Canaan AvalonMiner A10 7nm Bitcoin Miner N01

Recently, Canaan released the second-generation 16nm Avalon series bitcoin miner A10. Now, after receiving the prototype of Avalon A10, EastShore will bring you the evaluation as follows.



AvalonMiner A10 Parameters

Brand AvalonMiner A10
Hashrate 31TH/s (+/-5%) @ SHA256
Power consumption 1735w (+/- 10%)
Efficiency ratio 56w / TH



External Appearance of AvalonMiner A10

Since the AvalonMiner A10 miner we received this time is not packed with standard mass-production standards, we will omit the unpacking photos and only focus on the miner performance.

The A10 miner adopts the design of parallel dual cooling fans instead of the cylindrical single fan. The power supply is also integrated with the miner. The physical size is 292×190×190mm and the gross weight is 7.95kg. The miner can be placed horizontally or vertically according to the actual racks on the mining farms.

Evaluation on Canaan AvalonMiner A10 7nm Bitcoin Miner IMG 01

Evaluation on Canaan AvalonMiner A10 7nm Bitcoin Miner IMG 03

Evaluation on Canaan AvalonMiner A10 7nm Bitcoin Miner IMG 02

Evaluation on Canaan AvalonMiner A10 7nm Bitcoin Miner IMG 04

The AvalonMiner A10 adopts a power supply(model HQ2100-W02A) with the maximum efficiency of more than 94%. With IIC software communication, it can adapt to various requirements on power supply on the mining farm (AC input 176V~300V) and adjust the real-time output voltage between 12V and 14.5V based on the working status of the chip. The power supply has switch control, which is connected and fixed with the hashboard by the connectors.

Evaluation on Canaan AvalonMiner A10 7nm Bitcoin Miner IMG 05

Evaluation on Canaan AvalonMiner A10 7nm Bitcoin Miner IMG 06

Evaluation on Canaan AvalonMiner A10 7nm Bitcoin Miner IMG 07

AvalonMiner A10 control board has 2 AUC3 data transmission interfaces and 1 LED indicator. The indicator can be illuminated by the button “CGMiner Status” on the configuration page for the convenience of searching the miners. There are also two interfaces for cooling fans and one interface for power supply to regulate the voltage.

Evaluation on Canaan AvalonMiner A10 7nm Bitcoin Miner IMG 08

Evaluation on Canaan AvalonMiner A10 7nm Bitcoin Miner IMG 10

Evaluation on Canaan AvalonMiner A10 7nm Bitcoin Miner IMG 09

The AvalonMiner A10 adopts two 12038 12V 2.7A PWM fans with the model QFR1212GHE. The air outlet baffle is designed as hexagonal cutout to highlight the Canaan logo and the hashboard can be seen from outside. According to visual observation, the AvalonMiner A10 is equipped with two hashboards.

Evaluation on Canaan AvalonMiner A10 7nm Bitcoin Miner IMG 11

Evaluation on Canaan AvalonMiner A10 7nm Bitcoin Miner IMG 12

The accessories of AvalonMiner A10 include 1 miner power cord; 1 Raspberry Pi; 1 AUC3; 1 AUC3 cable, 2 micro USB cables. According to the official distribution policy, 5 or more miners will be gifted with 1 AUC3 (accumulated by 5 times), customers with less than 5 miners need to buy separately. In addition, the Raspberry Pi and power supply also need to be purchased separately.

Raspberry Pi

Evaluation on Canaan AvalonMiner A10 7nm Bitcoin Miner IMG 13

AUC3 and cable

Evaluation on Canaan AvalonMiner A10 7nm Bitcoin Miner IMG 14

Micro USB cable

Evaluation on Canaan AvalonMiner A10 7nm Bitcoin Miner IMG 15

Power cord

Evaluation on Canaan AvalonMiner A10 7nm Bitcoin Miner IMG 16

Dismantling the AvalonMiner A10, we can see that the casing is spliced by different aluminum alloys and fixed by screws based on different positions and functions instead of integrated molding, so the assembling seems a little complicated. Of course, it’s only an engineering prototype, maybe the final model of mass production will adopt improved design.

Evaluation on Canaan AvalonMiner A10 7nm Bitcoin Miner IMG 17

Evaluation on Canaan AvalonMiner A10 7nm Bitcoin Miner IMG 19

Evaluation on Canaan AvalonMiner A10 7nm Bitcoin Miner IMG 18

AvalonMiner A10 is equipped with two hashboard and each one carries 120 AvalonMiner 7nm A3205 chips. Every hashboard is fixed to the cooling fins with 18 screws to enhance the efficiency of heat conduction.

Evaluation on Canaan AvalonMiner A10 7nm Bitcoin Miner IMG 20

Evaluation on Canaan AvalonMiner A10 7nm Bitcoin Miner IMG 21

Evaluation on Canaan AvalonMiner A10 7nm Bitcoin Miner IMG 22

There is a considerable design that a plastic cover is added for the connector to increase the security.

Evaluation on Canaan AvalonMiner A10 7nm Bitcoin Miner IMG 25

Evaluation on Canaan AvalonMiner A10 7nm Bitcoin Miner IMG 24

Photo of Miner Dismantling

Evaluation on Canaan AvalonMiner A10 7nm Bitcoin Miner IMG 23



Installation and Configuration of AvalonMiner A10

The installation and configuration of AvalonMiner A10 are almost the same as that of other AvalonMiner series. Please refer to the User’s Manual of AvalonMiner Miners for detailed installation and configuration.



Test Data of AvalonMiner A10

The temperature in test environment is about 20℃, nominal voltage is 226V and the environmental noise is 51dB.

Evaluation on Canaan AvalonMiner A10 Bitcoin Miner IMG 26

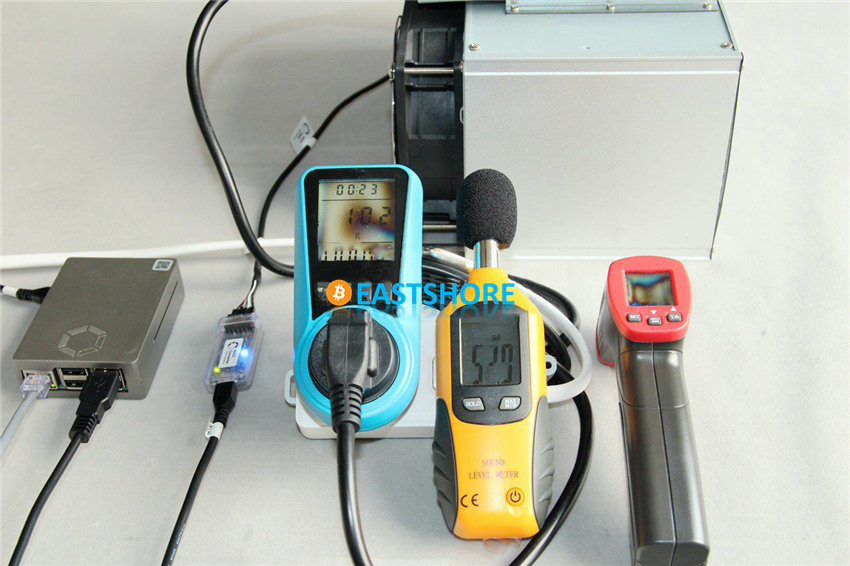

The standby power consumption is about 10W and the startup noise is about 53dB.

Evaluation on Canaan AvalonMiner A10 Bitcoin Miner IMG 27

In stable running, the tested power consumption is 1847W and the summit value is 1850W. The close noise is tested as 85.4dB and the tested noise about 2 meters away is 74dB.

Evaluation on Canaan AvalonMiner A10 Bitcoin Miner IMG 28

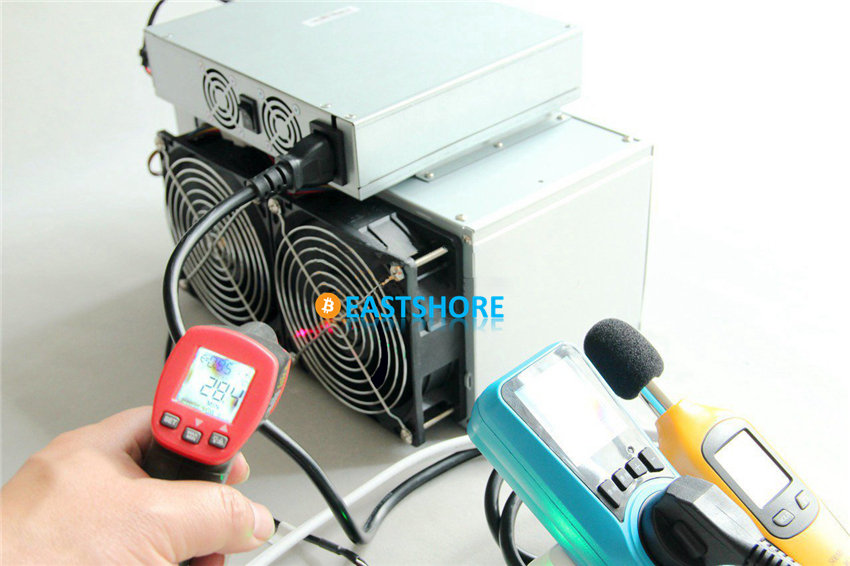

The air inlet temperature is 28.4℃, the casing temperature is 38.2℃ and the air outlet temperature is 50.5℃.

Evaluation on Canaan AvalonMiner A10 Bitcoin Miner IMG 31

Evaluation on Canaan AvalonMiner A10 Bitcoin Miner IMG 30

Evaluation on Canaan AvalonMiner A10 Bitcoin Miner IMG 32

The tested temperature on power supply casing is 30.5℃ and the air outlet temperature is 36.5℃.

Evaluation on Canaan AvalonMiner A10 Bitcoin Miner IMG 34

Evaluation on Canaan AvalonMiner A10 Bitcoin Miner IMG 33

After 24 hours of operation, the average hashrate displayed on configuration page is 31.2T.

Evaluation on Canaan AvalonMiner A10 Bitcoin Miner IMG 35

Stable pool reception and the 24-hour average hashrate is 31.96T.

Evaluation on Canaan AvalonMiner A10 Bitcoin Miner IMG 36



Summary

  • A10 miner adopts solid materials and AvalonMiner 16nm A3205 chip. It’s very uncommon for the 16nm miner to achieve such a low power consumption ratio.
  • The test result of hashrate is 31.2T, which is slightly higher than the official value of 31T. The power consumption 1850W is also within the official value of 1736W (0% ~ +15%).
  • The design of integrated power supply facilitates the maintenance on mining farms.
  • Unique Raspberry Pi cluster control increases the management efficiency on large-scale mining fields.
  • After 24 hours of testing, the power consumption of hashrate is stable with less fluctuations.
  • Noise and temperature are well controlled and the noise level is within acceptable limits.
  • Accessories such as Raspberry Pi and USB cables need to be purchased separately. For the small amount of miner purchase, the cost is increased. However, for the bulk purchase, the cost of network cable and router as well as wiring will be greatly saved with less financial investments.
