Evaluation on BITMAIN’s New Power Supply Antminer APW7

No Comments 1985 Views2


Evaluation on Antminer APW7 1800w Power Supply IMG 10

BITMAIN introduced the new dedicated power supply Antminer APW7 in June this year. As an upgraded version of Antminer APW3++, it has many technological progresses compared to the previous generation.

From the table of parameters, we can see that the rated power output has been increased from 1600W to 1800W, an increase of 200W, compared with the previous generation APW3++.

Antminer APW7 Power Supply Electronic Parameters Table

Have a look at the efficiency curve of Antminer APW7, we can find that the highest conversion efficiency is 95%, about 1.5% higher than that of APW3++ (93.5%).

Evaluation on Antminer APW7 1800w Power Supply IMG 08

Here we have specially made a comprehensive evaluation on this power supply. Let’s take a look at the actual performance of APW7 power supply!



Unpacking Photos

The APW7 power supply is in rectangular shape with metal case and BITMAIN logo on the top.

Antminer APW7 Power Supply Powerful PSU for Bitcoin Mining IMG N04

The basic parameters are printed on the side (Model APW7-12-1800-A3). The “INPUT” are “100-140VAC” and “200-264VAC”, which means this power supply supports super wide voltage range from 100V to 264V.

Antminer APW7 Power Supply Powerful PSU for Bitcoin Mining IMG N08

The power supply provides 4 channels, two of which have four standard PCI-E six-pin interfaces while the other two have one interface respectively. The 10 interfaces in total can meet the interface requirement for S9i, L3++ and other types of miners.

Antminer APW7 Power Supply Powerful PSU for Bitcoin Mining IMG N05

In the front is the cooling fan and power cable interface (power cord is not provided). When placing the miners on rack, the positioning of air outlet of the machine makes it convenient for dissipating the heated air.

Antminer APW7 Power Supply Powerful PSU for Bitcoin Mining IMG N09

The PCI-E interface is located in the back, where all the cables are neatly fixed.

Antminer APW7 Power Supply Powerful PSU for Bitcoin Mining IMG N10



Test

Power Consumption

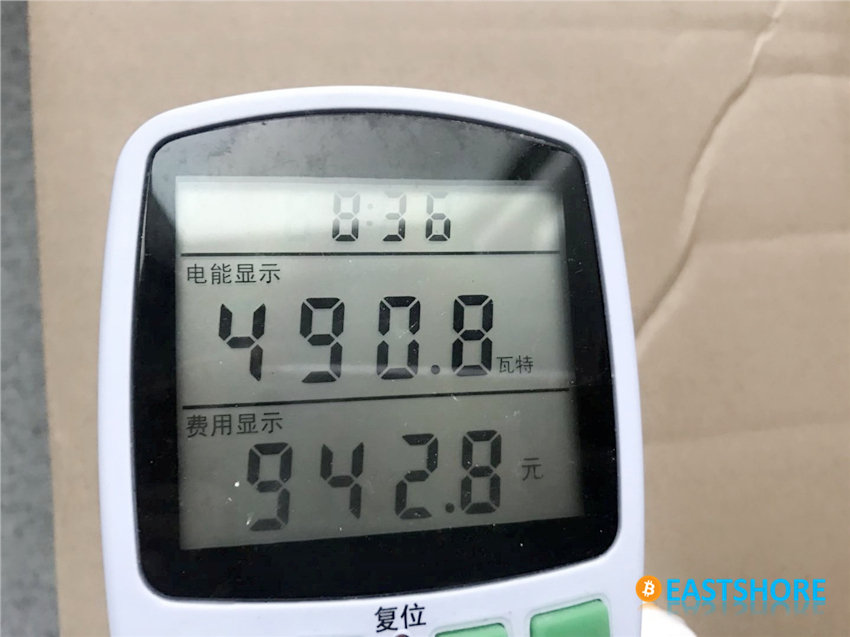

Use APW7 power supply to support one Antminer X3 (rated power 500W), the measured power is 490.8W, the load then is 490.8/1800=27.27%

Evaluation on Antminer APW7 1800w Power Supply IMG 01

Use APW3++ power supply to support one Antminer X3, the measured power is 498.2W, the load then is 498.2/1600=31.14%

Evaluation on Antminer APW7 1800w Power Supply IMG 02

It can be concluded that the new power supply APW7 can save 1.5% of power compared to the old model.

Mining Data

Use APW7 power supply to support one Antminer X3 (rated hashrate 220KH/S), the average hashrate is around 234.42KH/S and the fan speed is 3690 rpm.

Evaluation on Antminer APW7 1800w Power Supply IMG 03

Use APW3++ power supply to support one Antminer X3, the average hashrate is around 234.5KH/S and the fan speed is 3900 rpm.

Evaluation on Antminer APW7 1800w Power Supply IMG 04

Use different power supplies to maintain the basically same hashrate, the fan speed supported by APW7 power supply is lower.

Noise

Since the impact of miner noise cannot be eliminated in the test, the actual noise of the power supply will be disturbed by the miner noise. The actual noise of power supply is 67.4dBA.

Evaluation on Antminer APW7 1800w Power Supply IMG 05

Temperature

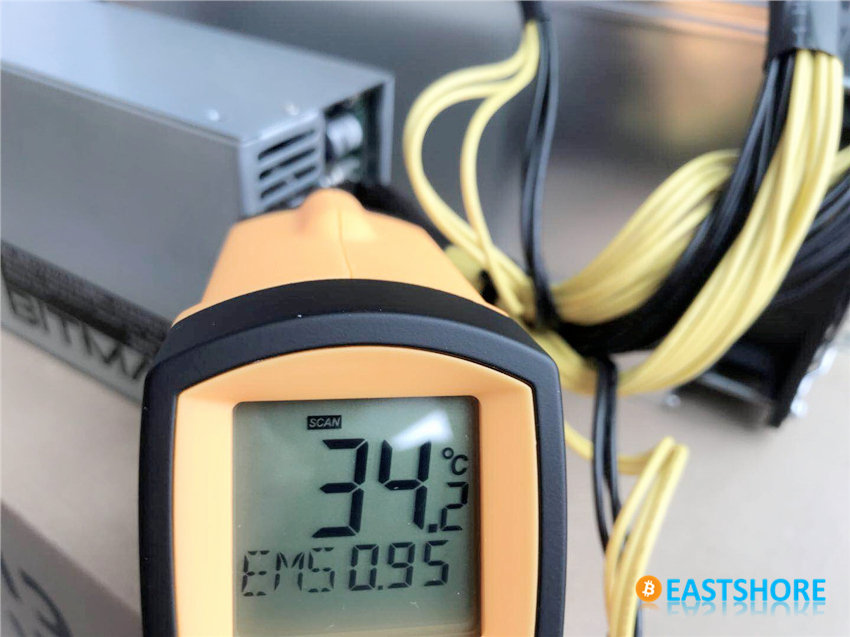

In terms of calorific values, the temperature measured on power supply case is about 31℃and the temperature measured at the tail of power supply case is about 34℃.

Evaluation on Antminer APW7 1800w Power Supply IMG 07

Evaluation on Antminer APW7 1800w Power Supply IMG 06



Summary

  1. With obvious energy-saving performance, APW7 power supply can help miners save mining costs and about 1.5% of energy compared with the product of previous generation.
  2. Due to less heat generation in operation and high cable quality, the power supply is suitable for high temperature environment of the mining farm.
  3. The power supply adopts PCI-E interface which is used on most miners currently, so it’s suitable for most miners.
