Evaluation on Antminer L3++ Litecoin Miner

No Comments 2030 Views0


Evaluation on Antminer L3++ Litecoin Miner IMG 33

Bitmain introduced Antminer L3 series at the end of 2016, which adopted the self-developed Litecoin chip BM1485. Antminer L3 series include three versions up to now: Antminer L3 (Hashrate 250m/ Power 400w), Antminer L3+ (Hashrate 500m/ Power 800w), Antminer L3++ (Hashrate 580m/Power 942w).

Evaluation on Antminer L3++ Litecoin Miner IMG 32

Litecoin miner is also known as Scrypt miner. Apart from Litecoin mining, it’s suitable for any Scrypt-based cryptocurrency.

This time, we conduct our evaluation on the latest version of Antminer L3++.



Unpacking Photos

Antminer L3++ is packed in five-layer industrial carton with complete logistics warehousing label, product barcode and brand logo.

Evaluation on Antminer L3++ Litecoin Miner IMG 08

The miner is wrapped with air bubbles and EPE foams to effectively ensure safe transportation. One user manual is attached inside.

Evaluation on Antminer L3++ Litecoin Miner IMG 12

Antminer L3++ adopts the dual-fan design in the front and rear with compact, sturdy and beautiful alloy casing.

Evaluation on Antminer L3++ Litecoin Miner IMG 14

One warning label is attached on the side.

Evaluation on Antminer L3++ Litecoin Miner IMG 15

Seen from above, we can see the miner consists of four hashboards, each has two PCI-E 6PIN interfaces and four data cables connecting to the controller.

Evaluation on Antminer L3++ Litecoin Miner IMG 28

The cover and power interface (PCI-E 6PIN) are on the top, one Antminer L3++ barcode is attached on the cover.

Evaluation on Antminer L3++ Litecoin Miner IMG 25

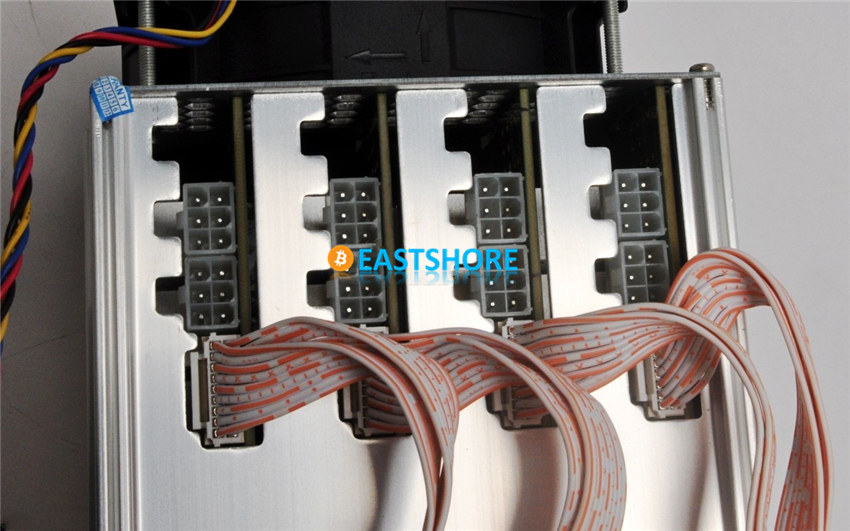

The data cable interface adopts buckle design to ensure tight contact for the sake of stable data transmission.

Evaluation on Antminer L3++ Litecoin Miner IMG 09

On the front: IP button, network cable socket, reset button, status light, Antminer logo and QC label. A 12cm fan (12v2.3A) to take in the air.

Evaluation on Antminer L3++ Litecoin Miner IMG 27

Evaluation on Antminer L3++ Litecoin Miner IMG 29

In the rear of miner is a 12cm cooling fan (12v2.3A) to take out the air.

Evaluation on Antminer L3++ Litecoin Miner IMG 30

Physical parameters of the miner:

Evaluation on Antminer L3++ Litecoin Miner IMG 16



Installation and Test

The installation and setting-up of Antminer L3++ is similar to that of other Bitmain models, so there’s no need to describe in detail here. Please refer to our guidance “ANTMINER GENERAL MINING GUIDE” at https://www.eastshoremining.com/tutorial-general-mining-guide-troubleshoot-for-antminer-models/

Once the setup is completed, the miner starts running tens of seconds later. The real-time status is shown on the “Miner Status” page.

Evaluation on Antminer L3++ Litecoin Miner IMG 34

Status lights to show normal operation of the miner.

Evaluation on Antminer L3++ Litecoin Miner IMG 17



Performance Test

The test uses Antminer APW3-12-1600-B2 power supply, whose conversion rate is as high as 93.5%. The indoor noise in this test is about 39dB, the indoor temperature is about 26℃ in the day and about 20℃at night.

Evaluation on Antminer L3++ Litecoin Miner IMG 10

With default frequency of 450 and long-term operation, the average hashrate is about 593M, whose curve is stable without obvious fluctuations.

Evaluation on Antminer L3++ Litecoin Miner IMG 23

Evaluation on Antminer L3++ Litecoin Miner IMG 22

The tested power is 1040W.

Evaluation on Antminer L3++ Litecoin Miner IMG 05

Overclocking concept: Each miner is slightly different from each other based on their own qualities, raise two to three gears every time on the premise of stable operation. In our test, the default frequency is 450, raise third gears to 469.

Evaluation on Antminer L3++ Litecoin Miner IMG 21

The average hashrate after long-term operation is about 610M.

Evaluation on Antminer L3++ Litecoin Miner IMG 20

Evaluation on Antminer L3++ Litecoin Miner IMG 24

The test power is 1080W.

Evaluation on Antminer L3++ Litecoin Miner IMG 11

In terms of noise, during normal operation when fan speed in daytime is about 4300 rpm, the measured noise about 20cm away from the miner is abut 83dB.

Evaluation on Antminer L3++ Litecoin Miner IMG 06

The default setting of fan speed is automatically adjusted based on ambient temperature. During normal operation when the temperature is low at night, the fan speed drops to about 3900 rpm, and the measured noise about 20cm away is about 80dB.

Evaluation on Antminer L3++ Litecoin Miner IMG 18

In terms of temperature, when the miner is under normal and stable running, the chip temperature on the “Miner Status” page is 50-58℃.

The measured temperature at air inlet is 30℃.

Evaluation on Antminer L3++ Litecoin Miner IMG 07

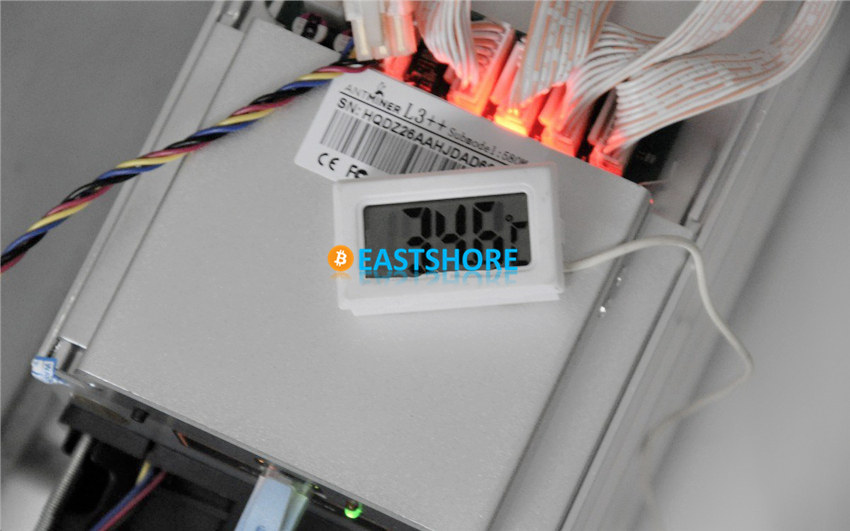

The measured temperature at air outlet is 30℃.

Evaluation on Antminer L3++ Litecoin Miner IMG 13



Summary

  • Antminer Litecoin L3++ is the optimized and upgraded version of L3+, and the hashrate of single miner is increased by about 90M.
  • Long-term of stable operation and the measured average hashrate is about 593M, the power is 1040w.
  • With certain overclocking space (depending on actual condition of every miner).
  • Applicable to all cryptocurrencies with Scrypt algorithm.
  • A little noisy, but it’s common for large hashrate miners nowadays.
  • Good heat dissipation, small temperature difference on the front and rear, it’s conducive to long-term stable operation.
  • Compact and sturdy design makes it easy to operate and largely established in mining farms.
